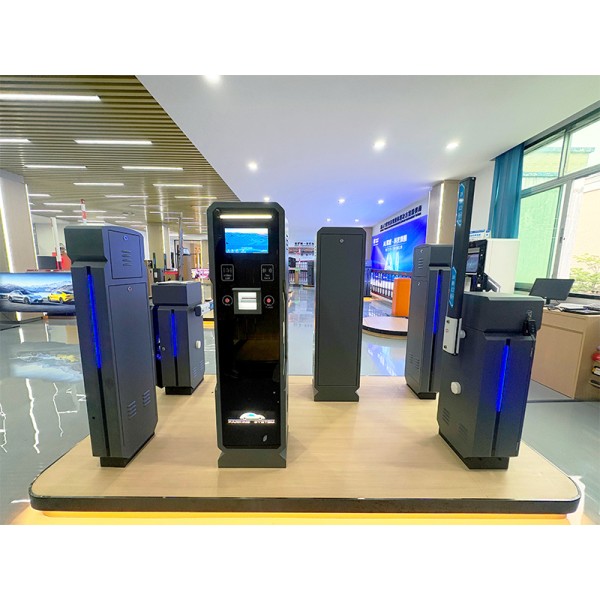

Self-Service Payment Kiosk QR Code IC Card, Soft Paper Ticket Terminal
Product Brief Introduction
Built exclusively for global unattended parking and transit ticketing operations, Self-Service Payment Kiosk QR Code IC Card, Soft Paper Ticket Terminal (model HW-S01) adopts thickened 2.0mm grey metal cabinet with two structural variants to separate entry and exit deployment. The entry hooded cabinet measures 1550×435×455mm for rainproof installation, while the slim hoodless cabinet sized 1550×370×455mm fits narrow exit passages, with a full machine weight controlled between 45KG and 50KG. Equipped with a 10.1-inch interactive LCD touch panel, Self-Service Payment Kiosk QR Code IC Card, Soft Paper Ticket Terminal integrates soft thermal paper ticket output unit, real-time voice intercom and automatic voice broadcast. It equips standard 10/100M Ethernet to achieve stable backend network linkage, and supports continuous operation under -30℃ to 80℃ extreme ambient temperature. Supporting dual settlement ways of QR code scanning and IC card tap payment, the terminal prints lightweight soft paper tickets to cut long-term consumable expenses for commercial parking operators.
Core Product Highlights & Technical Data Table
Key Differentiated Functional Highlights
- Dual cabinet structural options -- rain-shield hooded cabinet for parking entrances, compact hoodless cabinet for space-limited exit lanes
- Dual payment interaction design -- embedded QR scanning window and IC card induction area to adapt tourists without cash
- Low-cost soft paper ticketing module -- fast thermal printing of thin soft tickets, reducing daily paper consumption cost
- All-climate industrial hardware -- ultra-wide temperature range eliminates shutdown risk in cold northern or high-temperature tropical outdoor sites
- Built-in audio service system -- one-touch voice intercom connects background staff, voice broadcast guides self-operation for drivers
- Impact-resistant metal housing -- 2.0mm thick sheet metal avoids scratch and deformation under long-term public frequent use
Complete Technical Parameter Table
| Parameter Category |
Detailed Specification |
| Cabinet Material |
2.0mm Thick Grey Sheet Metal |
| Net Weight |
45 KG ~ 50 KG |
| Entry Cabinet Dimension |
1550 × 435 × 455 mm (hooded) |
| Exit Cabinet Dimension |
1550 × 370 × 455 mm (hoodless) |
| Human-Machine Display |
10.1 Inch LCD Touch Screen |
| Network Communication |
10/100M Self-adaptive Ethernet Port |
| Operating Temperature |
-30 ℃ ~ 80 ℃ |
| Ticket Output Format |
Soft Thermal Paper Parking Tickets |
Applicable Scenarios & Corresponding Solvable Management Points
Self-Service Payment Kiosk QR Code IC Card, Soft Paper Ticket Terminal targets low-budget unmanned vehicle access projects, resolving distinct operational bottlenecks of different venues:
- Shopping mall underground parking lots -- cuts continuous labor cost of manual cashiers; soft paper tickets lower monthly material expenditure, multi-payment functions disperse passenger flow to avoid peak-hour long queues
- Urban BRT and light rail outdoor stations -- wide temperature tolerance removes extra heat preservation or sunshade equipment investment; voice intercom offers remote customer service without fixed duty booths
- Residential community temporary parking zones -- slim hoodless cabinet saves limited road space, lightweight soft tickets occupy less storage space for daily settlement records
- Medium and small scenic spot parking zones -- QR and IC dual payment adapts domestic and foreign tourists with different payment habits, eliminating manual cash change workload
Traditional manned ticketing posts bring persistent labor overhead, while ordinary ticketing machines can only run within narrow temperature ranges and consume expensive hard tickets. Self-Service Payment Kiosk QR Code IC Card, Soft Paper Ticket Terminal balances low operating cost and all-weather stable performance to solve these core management troubles.
Frequently Asked Questions
- Can Self-Service Payment Kiosk QR Code IC Card, Soft Paper Ticket Terminal run steadily in cold northern outdoor parking areas all year round?
-- Yes, the whole machine supports stable operation from -30℃ to 80℃, no additional heating devices are needed for low-temperature outdoor installation.
- Is the soft paper ticket printing component easy to maintain when paper jam faults occur?
-- The ticket dispenser adopts independent modular design, users can disassemble and replace the single module separately without removing the entire cabinet shell.
- Does the 10.1-inch touch screen support multi-language display for overseas regional markets?
-- The backend management platform supports uploading customized multi-language packs to match local language demands of various countries.
- What core difference exists between hooded and hoodless cabinet versions?
-- Hooded cabinets are designed for entrance outdoor anti-rain protection; hoodless slim cabinets are customized for narrow exit passages with limited installation space.
