Luxury Square Flap Gate Barrier , RFID Turnstile Gate With Card Reader

  • 1
  • 2
  • 3

Operatingtemperature : -20°C to 60°C

Brand Name : Jieshida

Certification : ISO9001

Surface Finish : Brushed Finish

Operating Time : 0.2 Seconds

Passage Width : 550 mm

Model Number : JSD-Y08D

MOQ : 1 SET

Supply Ability : 1000sets/month

Price : USD 300-1,500

Name : Flap Gate Barrier

Payment Terms : T/T

Delivery Time : 5-8 working days

Material : 304 Stainless Steel

Place of Origin : Shenzhen City, Guangdong Province, China

Cabinet Size : 1400 * 300 * 980 mm

Packaging Details : Export-standard wooden box

Contact Now

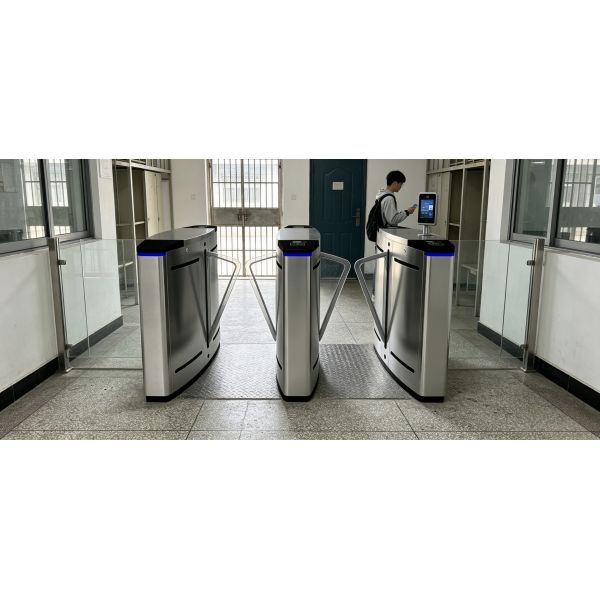

JSD-Y08D Luxury Square Flap Barrier Gate with RFID Card Reader for Secure Entry
Product Overview

The Luxury Square Flap Barrier Gate JSD-Y08D is a high-end pedestrian access control solution designed for secure and efficient entry management in modern commercial and public environments. Featuring a premium square-shaped SUS304 stainless steel housing, fast 0.5-second opening response, and intelligent anti-tailgating protection, this flap barrier gate combines elegant appearance with advanced security performance. The system supports RFID card readers, face recognition devices, QR scanners, and fingerprint modules for flexible authentication methods.

Key Features
  • Luxury Square Design: Modern square cabinet structure with brushed SUS304 stainless steel finish
  • RFID Access Control Integration: Supports RFID card readers and multiple authentication devices
  • Anti-Tailgating Protection: Effectively prevents unauthorized entry and tailgating behavior
  • Infrared & Mechanical Anti-Pinch Protection: Advanced dual safety system for pedestrian protection
  • Fast Opening Response: Opens within 0.5 seconds for high-traffic environments
  • Automatic Reset Function: Self-resetting after authorized passage or preset delay
  • LED Direction Indicators: High-brightness visual guidance for pedestrian movement
  • Adjustable Wing Operating Speed: Configurable opening and closing speeds
  • Fire Alarm Emergency Function: Automatic opening during emergencies for safe evacuation
  • Automatic Protection System: Prevents component damage from external force interference
Technical Specifications
Item Specification
Model JSD-Y08D
Product Type Luxury Square Flap Barrier Gate
Housing Material SUS304 Brushed Stainless Steel
Drive Motor DC Brushed Motor
Passage Direction Single / Bi-directional
Opening Time 0.5 Seconds
Input Voltage AC220V ±10%, 50Hz
Working Voltage DC24V / DC12V
Communication Interface RS485, TCP/IP (Optional)
Infrared Sensors Standard 3 Pairs (Expandable)
Operating Temperature -10℃ to 60℃
Service Life Over 5 Million Cycles
Application Scenarios
Office Buildings
Improves employee and visitor access management while preventing unauthorized entry into restricted office areas.
Metro Stations
Enhances passenger flow efficiency and reduces fare evasion through intelligent access control and anti-tailgating protection.
Government Buildings
Provides secure pedestrian entry management for sensitive or restricted administrative areas.
Commercial Complexes
Maintains organized pedestrian traffic and improves entrance security in high-traffic commercial environments.
Smart Campuses
Supports integrated campus access control systems for students, staff, and visitors using RFID or biometric authentication.
Industrial Parks & Factories
Improves staff attendance management and controls unauthorized personnel access to production areas.
Frequently Asked Questions
Does the JSD-Y08D support RFID card access?
Yes. The JSD-Y08D is compatible with RFID card readers and can also integrate with face recognition, QR code, and fingerprint systems.
Is the gate suitable for high-traffic environments?
Yes. With a fast 0.5-second opening response and durable structure, the JSD-Y08D is designed for continuous high-frequency operation.
What safety features are included?
The gate includes infrared and mechanical anti-pinch protection, anti-tailgating detection, automatic alarms, and emergency free-passage functions.
Can the flap barrier work outdoors?
Yes. The SUS304 stainless steel structure makes it suitable for both indoor and outdoor environments.
What happens during power failure?
The flap wings automatically remain open during power outages to ensure safe evacuation and uninterrupted pedestrian passage.
Can the operating speed be adjusted?
Yes. The opening and closing speed of the flap wings can be configured according to project requirements.
What communication interfaces are supported?
The gate supports RS485 communication as standard, with optional TCP/IP connectivity available.
What is the service life of the gate?
The JSD-Y08D flap barrier gate is designed for more than 5 million continuous operating cycles.
