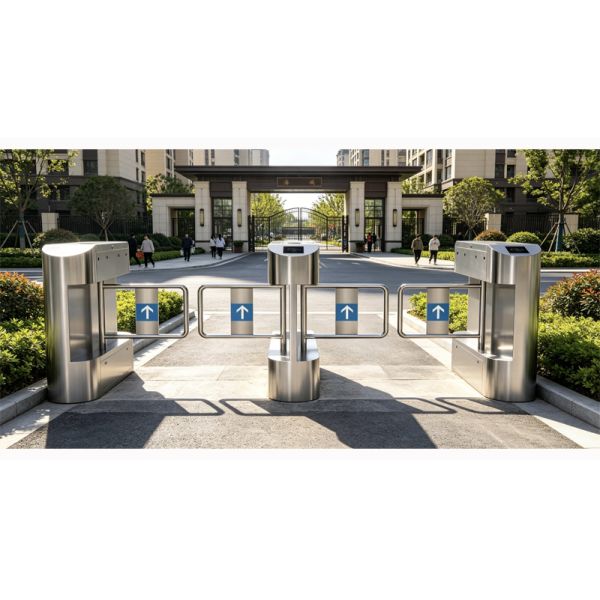

JSD-B11 Stainless Steel Swing Turnstile Gate with RFID Access for Commercial Entrances
The JSD-B11 Stainless Steel Swing Turnstile Gate is a high-performance access control solution designed for commercial buildings, office entrances, factories, residential communities, and public facilities. Built with durable 304 brushed stainless steel and powered by a DC brushless motor, the system delivers stable, low-noise, and long-lasting operation with over 3 million cycles.
Product Features
- Intelligent ARM Control System with multifunction digital settings and encryption protection
- Automatic Reset Function that cancels unauthorized passage permissions
- Anti-Reverse & Anti-Collision Protection with immediate reverse thrust and alarms
- Adjustable Opening & Closing Speed for customized traffic flow management
- Infrared Safety Detection with 4 pairs of standard sensors
- Fire Alarm Emergency Integration for automatic gate opening during emergencies
- Intelligent Alarm System for illegal intrusion and tailgating detection
- Unattended Operation with automatic power failure response
- Multiple Access Control Integrations including RFID, face recognition, QR code, and fingerprint systems
Technical Specifications
| Item |
Specification |
| Drive Motor |
DC Brushless Motor |
| Opening Time |
0.5 Seconds |
| Passage Direction |
Single / Bi-directional |
| Input Voltage |
AC220V±10%, 50Hz |
| Working Voltage |
DC24V / DC12V |
| Communication Interface |
RS485 / Optional TCP/IP |
| Infrared Sensors |
4 Pairs Standard |
| Barrier Material |
Acrylic or Stainless Steel |
| Working Temperature |
-10°C ~ 60°C |
| Humidity |
5% ~ 95% Non-condensing |
| Service Life |
Over 3 Million Cycles |
| Installation Environment |
Indoor & Outdoor |
Application Scenarios
Office Buildings
Controls unauthorized access, improves employee attendance management, and enhances office security through RFID or face recognition verification.
Residential Communities
Prevents strangers from entering residential areas while providing convenient access for residents and visitors.
Commercial Complexes & Shopping Malls
Manages high pedestrian traffic efficiently while reducing tailgating and unauthorized entry incidents.
Factories & Industrial Parks
Improves employee access management, attendance tracking, and restricted area protection in industrial environments.
Schools & Universities
Enhances campus security by controlling entry points and monitoring student and visitor access.
Transportation Hubs
Provides fast and orderly pedestrian passage while improving safety management in metro stations and terminals.
Frequently Asked Questions
What access control systems can be integrated with the swing turnstile?
The gate supports RFID card readers, face recognition devices, QR code scanners, fingerprint readers, and ID card readers.
Is the swing turnstile suitable for outdoor installation?
Yes. The gate is designed for both indoor and outdoor environments with durable stainless steel construction.
What happens during a power failure?
The swing arm automatically opens during power outages to allow free passage and emergency evacuation.
Can the passage speed be adjusted?
Yes. The opening and closing speed of the swing arm can be adjusted according to different application requirements.
Does the system support anti-tailgating detection?
Yes. Infrared sensors and intelligent control algorithms help detect illegal intrusion and tailgating behavior.
What communication protocols are available?
Standard communication is RS485, and TCP/IP communication is available as an optional feature.
How long is the service life of the gate?
The swing turnstile supports more than 3 million continuous opening and closing cycles.
Can the lane width be customized?
Yes. The standard passage width is 1100mm, and customization options are available for specific project requirements.
