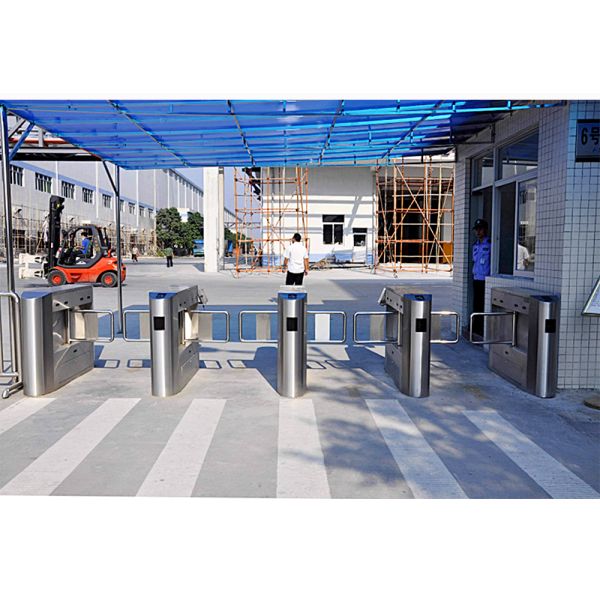

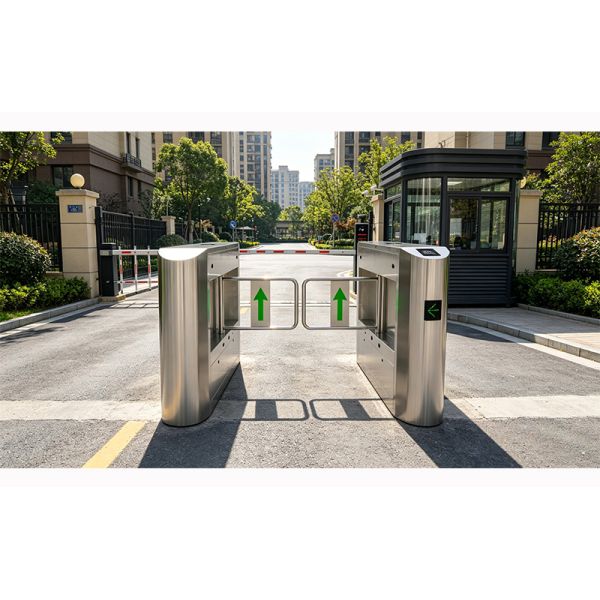

JSD-B16 Swing Barrier , Arc Rounded Design , 1400mm Extended Length , 1.2mm Stainless Steel Thickness
Product Introduction
The JSD-B16 Swing Barrier is a premium pedestrian access control solution defined by its arc rounded design, 1400mm extended length cabinet, and 1.2mm stainless steel thickness. Built with 304 brushed stainless steel, it combines sleek aesthetics with industrial-grade durability. Powered by a DC brushless motor, it delivers a fast 0.5-second opening response, ideal for high-traffic environments. Its robust construction and weather-resistant performance ensure reliable access control for both indoor and outdoor settings.
Key Features
- Arc Rounded Design -- Streamlined, safety-focused edges eliminate sharp corners, enhancing visual appeal and user safety in busy spaces.
- 1400mm Extended Length Cabinet -- The longer chassis provides enhanced stability, reducing vibration and improving structural integrity during operation.
- 1.2mm Stainless Steel Thickness -- Thickened top cover and body offer superior scratch, corrosion, and wear resistance for long-term use.
- Fast and Quiet Operation -- 0.5-second opening time with brushless motor technology ensures efficient access without disruptive noise.
- Expandable Safety Sensors -- Standard 4 pairs of infrared sensors prevent tailgating and collisions, with support for additional sensors.
Technical Specifications
| Parameter |
Specification |
| Cabinet Material |
304 Brushed Stainless Steel |
| Cabinet Thickness |
1.2mm |
| Overall Dimensions |
1400*280*980mm |
| Passage Width |
1100mm |
| Power Input |
AC220V±10%, 50Hz±4% |
| Working Voltage |
DC24V / DC12V |
| Communication Interface |
RS485 / TCP/IP (Optional) |
| Working Temperature |
-10°C ~ 60°C |
| Opening Time |
0.5 Seconds |
| Service Life |
Over 3 Million Cycles |
Application Scenarios & Solutions
- Office Buildings -- Controls employee and visitor access, streamlining commutes with quick operation while preventing unauthorized entry.
- Shopping Malls -- Manages peak-hour crowd flow with its wide passage, reducing congestion at entrances and exits.
- Airports & Hubs -- Enhances security at checkpoints, supporting integration with ID scanners and facial recognition.
- Schools & Facilities -- Creates a safe environment by restricting access, with sensors preventing tailgating and ensuring student safety.
- Residential Complexes -- Balances security and convenience for residents, with weather-resistant design suitable for outdoor use.
FAQ
Q: Can the JSD-B16 Swing Barrier be used outdoors?
A: Yes, the 304 stainless steel construction and wide temperature range make it suitable for both indoor and outdoor use.
Q: What systems is it compatible with?
A: It supports standard dry contact signals and integrates with most IC/ID readers, QR scanners, and face recognition modules.
Q: How long is its service life?
A: With proper maintenance, it can withstand over 3 million continuous opening cycles for long-term reliability.
