JSD-B32 Swing Arm Barrier, Anti-climb High Security, Heavy Duty Chassis
1. Product Introduction
The JSD-B32 Swing Arm Barrier is a high-security, heavy-duty access control solution, purpose-built for environments requiring enhanced anti-climb protection. Crafted from 304 brushed stainless steel with a robust 1200*280*980mm chassis, this swing barrier combines industrial-grade durability with reliable performance. Powered by a DC brushless motor, it delivers smooth 0.5-second operation, while its anti-climb design prevents unauthorized access attempts, making it ideal for high-security facilities seeking both safety and longevity.
2. Key Features
- Anti-climb High Security Design — The unique perforated swing arm acts as a physical barrier, preventing climbing attempts and unauthorized passage for enhanced security.
- Heavy Duty 304 Stainless Steel Chassis — With 1.2mm top cover and 1.0mm body thickness, the robust construction resists impact, corrosion, and wear for long-term use in demanding environments.
- Smooth and Reliable Operation — DC brushless motor ensures quiet, consistent swing movement with a 0.5-second opening time, suitable for high-traffic zones.
- Expandable Safety and Integration — Standard 4 pairs of infrared sensors prevent tailgating and collisions, with support for IC/ID readers, QR scanners, and facial recognition modules.
- Detachable Terminals for Easy Maintenance — The modular design simplifies installation and maintenance, reducing downtime in commercial and industrial settings.
3. Technical Specifications
| Parameter |
Specification |
| Material |
304 Brushed Stainless Steel |
| Chassis Thickness |
1.2mm (Top Cover), 1.0mm (Body) |
| Dimensions |
1200*280*980mm |
| Passage Width |
1100mm |
| Power Input |
AC220V±10%, 50Hz±4% |
| Working Voltage |
DC24V / DC12V |
| Communication Interface |
RS485 (≤1200m) / TCP/IP (Optional) |
| Opening Time |
0.5 Seconds |
| Service Life |
Over 3 Million Cycles |
| Working Temperature |
-10°C ~ 60°C |
4. Application Scenarios & Solutions
- Industrial Facilities — Provides controlled access to restricted areas, with the anti-climb design preventing unauthorized entry to warehouses and production zones.
- Corporate Headquarters — Enhances lobby security, balancing employee convenience with robust protection against tailgating and forced entry attempts.
- Government & Public Institutions — Ensures secure access to sensitive areas, with durable construction suitable for high-traffic public spaces requiring reliable security.

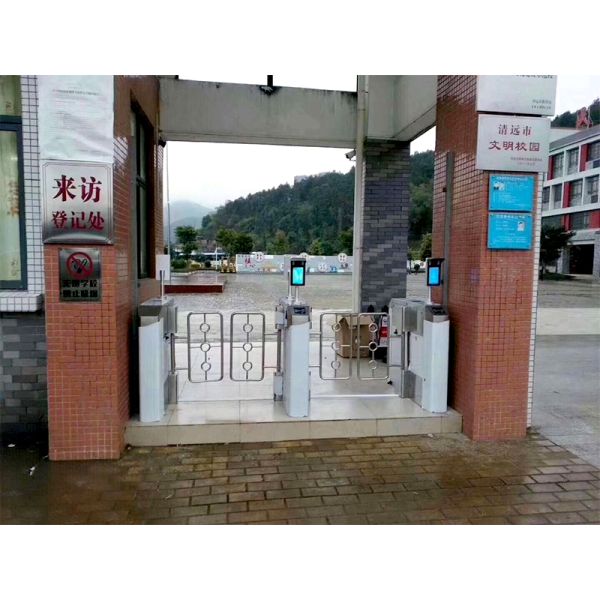

- Educational Campuses — Creates a safe environment for students and staff, preventing unauthorized access to restricted campus areas with the heavy-duty barrier.
- High-Security Commercial Buildings — Delivers both security and durability for office complexes, with weather-resistant construction suitable for indoor and outdoor use.
5. FAQ
Q: How does the anti-climb design work?
A: The perforated swing arm creates a physical barrier that prevents climbing attempts, while infrared sensors detect and block unauthorized movement through the passage.
Q: What maintenance does the heavy-duty chassis require?
A: The 304 stainless steel body is easy to clean, and detachable terminals simplify component replacement, ensuring minimal upkeep.
Q: Can it integrate with existing access control systems?
A: Yes, it supports standard dry contact signals and integrates with most IC/ID readers, QR scanners, and facial recognition modules.
