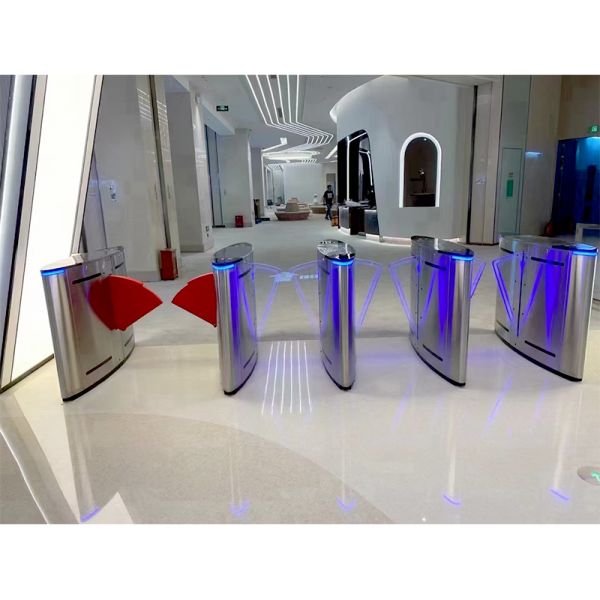

JSD-Y07 Smart Flap Barrier Gate with RFID Card Reader for Heavy Traffic
Product Overview
The JSD-Y07 Smart Flap Barrier Gate is a high-performance pedestrian access control solution designed for heavy-traffic environments such as metro stations, office buildings, airports, commercial complexes, and smart campuses. Equipped with a reliable DC brushless motor, fast 0.5-second opening response, and intelligent RFID access control integration, the Y07 delivers stable, efficient, and secure pedestrian management. Constructed with durable SUS304 brushed stainless steel and acrylic flap panels, the system combines modern aesthetics with long-lasting performance. Featuring four pairs of infrared sensors, anti-tailgating protection, automatic reset, and flexible communication interfaces, the Y07 flap barrier gate provides safe and smooth pedestrian flow for demanding indoor and outdoor applications.
Product Features
-
High-Performance Brushless Motor
Equipped with a DC brushless motor for smoother operation, lower maintenance requirements, improved efficiency, and longer service life.
-
Designed for Heavy Traffic
The fast 0.5-second opening speed and stable control system make the Y07 ideal for high-frequency pedestrian access environments.
-
RFID Access Control Compatibility
Supports RFID card readers and integrates with face recognition terminals, QR code scanners, fingerprint devices, and other access systems.
-
Advanced Infrared Protection
Standard 4 pairs of infrared sensors provide more accurate pedestrian detection and enhanced anti-pinch safety protection.
-
Anti-Tailgating Function
Automatically prevents unauthorized access and improves security management efficiency in busy entrances.
-
Durable Acrylic Flap Wings
High-quality acrylic flap panels provide smooth movement, stable operation, and a modern visual appearance.
-
LED Direction Indicators
Integrated LED indicators provide clear directional guidance and improve passage efficiency for users.
-
Flexible Communication Interfaces
Supports RS485 communication as standard, with optional TCP/IP connectivity for intelligent access management systems.
-
Indoor & Outdoor Installation
Designed for reliable operation in both indoor and outdoor environments with strong environmental adaptability.
-
Easy Installation & Maintenance
Detachable terminal design simplifies installation, maintenance, and system upgrades.
Technical Specifications
| Item |
Specification |
| Model |
Y07 |
| Product Type |
Smart Flap Barrier Gate |
| Housing Material |
SUS304 Brushed Stainless Steel |
| Flap Material |
Acrylic |
| Drive Motor |
DC Brushless Motor |
| Passage Direction |
Single / Bi-directional |
| Opening Time |
0.5 Seconds |
| Input Voltage |
AC220V ±10%, 50Hz |
| Working Voltage |
DC24V / DC12V |
| Communication Interface |
RS485, TCP/IP (Optional) |
| Input Signal |
Dry Contact / 12V Pulse Signal |
| Infrared Sensors |
Standard 4 Pairs (Expandable) |
| Passage Width |
≤550 mm |
| Operating Temperature |
-10℃ to 60℃ |
| Humidity |
5%–95% Non-condensing |
| Installation Environment |
Indoor / Outdoor |
| Service Life |
Over 3 Million Cycles |
Application Scenarios
Metro Stations
Core Problem Solved:
Handles large passenger flow efficiently while reducing unauthorized entry and improving access control security.
Airports
Core Problem Solved:
Provides fast and organized passenger access management in high-traffic transportation environments.
Office Buildings
Core Problem Solved:
Enhances employee and visitor access management with intelligent authentication systems.
Commercial Complexes
Core Problem Solved:
Maintains smooth pedestrian circulation and improves security in busy shopping and business environments.
Smart Campuses
Core Problem Solved:
Supports integrated student and staff access control using RFID and biometric authentication technologies.
Industrial Parks & Factories
Core Problem Solved:
Improves workforce management and controls access to restricted operational areas.
FAQ
Q1: What makes the Y07 suitable for heavy-traffic environments?
The Y07 features a DC brushless motor, fast 0.5-second opening response, and enhanced infrared detection system for stable high-frequency operation.
Q2: Which access control systems are supported?
The gate supports RFID card readers, QR code scanners, face recognition terminals, fingerprint modules, and customized third-party systems.
Q3: Does the gate include safety protection functions?
Yes. The system includes four pairs of infrared sensors and intelligent anti-pinch protection to ensure pedestrian safety.
Q4: Can the Y07 operate outdoors?
Yes. The SUS304 stainless steel cabinet and reliable control system make it suitable for both indoor and outdoor installation.
Q5: What communication interfaces are available?
The gate supports RS485 communication as standard, with optional TCP/IP networking support.
