Boom Barrier JSD-D09 Straight Rod For Parking & Office Access
Product Overview
The JSD-D09 Straight Rod Boom Barrier is designed for parking lots, office entrances, and commercial complexes. Featuring a DC brushless variable-frequency motor and servo-driven mechanism, it provides smooth, quiet, and reliable barrier operation. With adjustable opening and closing times (1.5–6 seconds) and a remote control range of 30–50 meters, it ensures flexible access management. The system supports cloud and local software adjustments, allowing real-time monitoring, remote troubleshooting, and anti-tailgating detection. Its robust steel chassis with high-temperature paint and customizable rod lengths up to 6 meters makes it suitable for both standard and wide-lane access applications.
Product Features
- DC brushless variable-frequency motor for low-noise, stable operation
- Adjustable rise/fall speed (1.5–6 seconds) for smooth traffic management
- Remote control distance up to 50 meters
- Rod length up to 6 meters, straight design for standard lanes
- Cloud, mobile, and local software support for remote parameter adjustments
- Anti-tailgating monitoring and manual override support
- High-strength steel chassis with high-temperature coating
- LED traffic indicator for clear guidance
Technical Details
| Item |
Specification |
| Chassis Weight |
35 KG |
| Pole Weight |
5 KG |
| Motor Operating Temp |
-30 °C to 80 °C |
| Chassis Dimensions |
330 * 320 * 1070 mm |
| Power Supply |
24V 8A |
| Protection Class |
IP44 |
| Rod Specification |
100 * 45 * 1.0 mm wall thickness |
| Max Rod Length |
6 meters |
| Opening/Closing Speed |
1.5–6 seconds adjustable |
| Remote Frequency |
430 Hz |
| Color Options |
Agate Black chassis, Door Silver Gray/Gold/Black |
| Standard Accessories |
4 M10*80 screws, 2 remotes, chassis hat traffic lights |

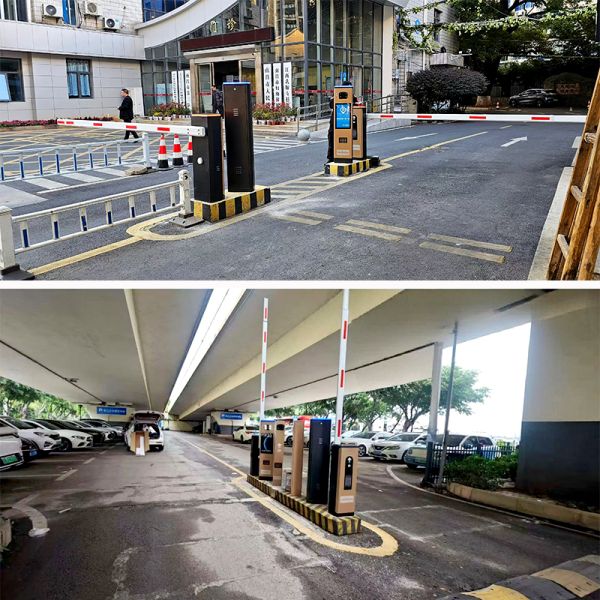

Application Scenarios
- Parking Lots: Smooth vehicle flow with remote adjustment and tailgating prevention.
- Office Buildings: Efficient employee entry with controlled access.
- Commercial Complexes: Reliable barrier management in high-traffic areas.
- Residential Communities: Automated and secure vehicle access monitoring.
FAQ
Q1: Can the rod length be customized?
A1: Yes, up to 6 meters for single or dual-lane access.
Q2: Is remote control included?
A2: Yes, two remotes come standard with each barrier.
Q3: Can the opening speed be adjusted?
A3: Yes, the rise and fall speed is adjustable between 1.5–6 seconds.
