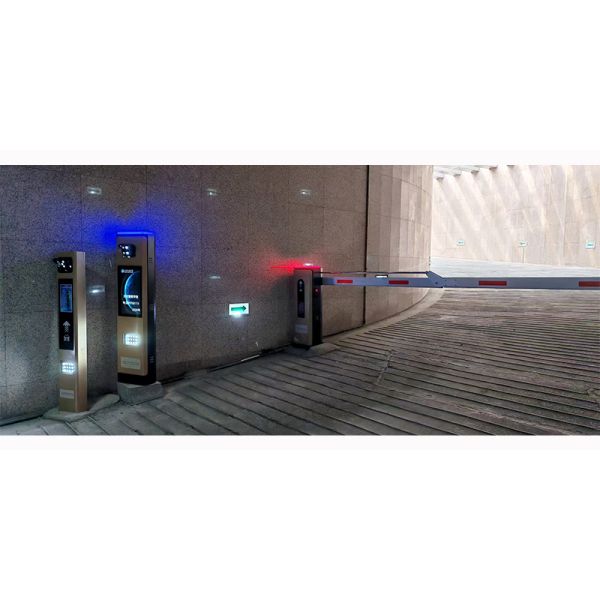

Boom Barrier JSD-D09 Folding Arm For Wide Lane & High Clearance
Product Overview
The Folding Arm version of the JSD-D09 boom barrier is designed for wide lanes and areas requiring high clearance, such as stadium entrances, logistics centers, and airports. Its foldable rod allows operation in spaces with overhead restrictions while maintaining smooth and adjustable movement. Equipped with a DC brushless variable-frequency motor, remote control, and cloud-based monitoring, it provides intelligent access management with anti-tailgating detection. The barrier supports rods up to 6 meters long, adjustable opening/closing speed, and a robust steel chassis finished with high-temperature paint for long-lasting performance.
Product Features
- Foldable arm design for high-clearance or wide-lane applications
- Adjustable rise/fall speed (1.5–6 seconds)
- DC brushless motor for quiet and stable operation
- Remote control distance up to 50 meters
- Cloud, mobile, and local software management
- Anti-tailgating and manual override support
- Durable steel chassis with high-temperature coating
- LED traffic indicators for status guidance
Technical Details
| Item |
Specification |
| Chassis Weight |
35 KG |
| Pole Weight |
5 KG |
| Motor Operating Temp |
-30 °C to 80 °C |
| Chassis Dimensions |
330 * 320 * 1070 mm |
| Power Supply |
24V 8A |
| Protection Class |
IP44 |
| Rod Specification |
Folding Arm, 100 * 45 * 1.0 mm |
| Max Rod Length |
6 meters |
| Opening/Closing Speed |
1.5–6 seconds adjustable |
| Remote Frequency |
430 Hz |
| Color Options |
Agate Black chassis, Door Silver Gray/Gold/Black |
| Standard Accessories |
4 M10*80 screws, 2 remotes, chassis hat traffic lights |
Application Scenarios
- Stadium Entrances: Provides safe vehicle access in wide lanes.
- Airports & Logistics Centers: High-clearance barrier for oversized vehicles.
- Industrial Gates: Smooth operation for large truck entrances.
- Commercial Parking Lots: Flexible barrier solution for multiple lane widths.
FAQ
Q1: Can the folding arm be used in restricted overhead areas?
A1: Yes, the folding design allows clearance in spaces with height limitations.
Q2: Is the barrier system suitable for heavy vehicle traffic?
A2: Yes, the robust chassis and adjustable rod speed handle high-traffic conditions.
Q3: Can it be integrated with cloud-based management?
A3: Yes, it supports remote cloud, mobile, and local software acce
